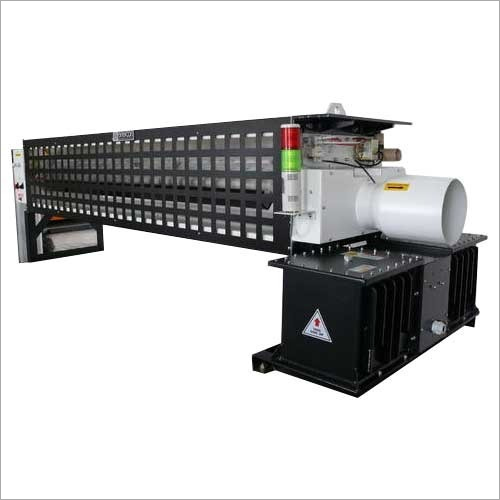

Corona Treater

Get a Price/Quote

MOQ : 1 Unit

Corona Treater Specification

Features
Easy installation, energy efficient, robust design, uniform treatment

Lubricating System
No external lubrication required

Model No
CT-8421

Power Rating
4350 W

Frame Type
Heavy duty steel

Machine Type
Corona Treater

Operating Temperature
10C ~ 50C

Frequency
50 Hz / 60 Hz

Drive
AC Motor

Control System
Digital Control Panel

Motor Power
3 HP

Noise Level
<70 dB

Accuracy
High (0.02 mm)

Connectivity Options
RS485 / Ethernet

Plastic Processed
PE, PET, PP, BOPP, PVC

Production Capacity
Up to 120 m/min

Voltage
220 V / 380 V

Cooling System
Air cooled

Product Type
Corona Treater

Technology
Corona Discharge

Power Source
Electric

Operating Type
Automatic

Power
2 KW to 5 KW

Pressure
Atmospheric

Surface Treatment
Polymer film surface modification

Dimension (L*W*H)
1200 mm x 800 mm x 1500 mm

Weight (kg)
220 kg

Color
Blue / White

Usage & Applications
Surface treatment for plastic, metallic films and foils, packaging materials

Safety Protection
Interlock, overload protection

Display Type
Digital LCD

Bearing Type
Sealed ball bearing

Treatment Width
600 mm - 1500 mm

Adjustment Type
Manual/Auto electrode gap adjustment

Environment
Industrial/Factory Settings

Mounting Style
Floor/Frame mounted

Treatment Level
Up to 52 Dynes/cm

Ambient Humidity
Up to 65%

Service Support
Onsite/Remote

Electrode Material
Aluminium / Ceramic

Roller Material
Silicone Rubber Coated

Transportation Wheels
Yes

Corona Treater Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
10 Units Per Day

Delivery Time
4-6 Week

Main Export Market(s)
Australia, Eastern Europe, Middle East, Western Europe, Africa, Central America, South America, Asia, North America

Main Domestic Market
All India

About Corona Treater

Capitalizing on our sound and robust infrastructural set up, we have become manufacturer, exporter and supplier of Bare Roll Treater. The offered roll treater is manufactured with the help of advanced technology using optimal quality raw materials keeping in mind all the set quality standards of the industry. Provided roll treater is widely used for corona treatment of conductive and non conductive film. Also, this Bare Roll Treater can be availed from us in different specifications at market leading prices.

Features:

Compact design
Strong construction
Negligible maintenance
Easy to operate

Advanced Surface Treatment for Packaging and Films

Engineered with corona discharge technology, this corona treater model CT-8421 excels in modifying surfaces of polymers like PE, PET, PP, BOPP, and PVC. Its precise control system ensures consistent surface energy enhancement, vital for print, coating, or lamination processes. Suitable for both plastic and metallic substrates, it adapts well to modern packaging lines, enhancing product adhesion and performance.

Built for Industrial Efficiency and Reliability

This machine boasts heavy-duty steel framing, silicone-coated rollers, and sealed ball bearings for prolonged industrial use. Its intuitive digital LCD panel, robust safety features, and easy installation make it ideal for factory settings. Supporting both manual and automatic electrode gap adjustments, the CT-8421 treater is designed for flexibility, durability, and minimal downtime.

FAQs of Corona Treater:

Q: How does the corona treater modify the surface of materials?

A: The CT-8421 corona treater employs corona discharge technology to increase the surface energy of polymer and metallic films. When the film passes between the electrode (aluminium or ceramic) and the silicone rubber-coated roller, a high-voltage electric field alters the surface at a molecular level. This improves adhesion for subsequent processes like printing, coating, or laminating.

Q: What types of materials are best suited for treatment with this machine?

A: This machine is ideal for treating polymer films such as PE, PET, PP, BOPP, and PVC, as well as various metallic films and foils. Its flexibility allows it to meet the surface modification requirements of a wide range of packaging and industrial applications.

Q: When should a manufacturer consider using a corona treater in their production process?

A: A corona treater should be used whenever surface energy of the substrate is inadequate for proper ink, adhesive, or coating adhesion. This is especially important in packaging and printing industries where quality and consistency are essential for downstream processing.

Q: Where can the corona treater be installed in a production facility?

A: The CT-8421 can be floor or frame mounted, allowing for convenient integration into existing production lines within factory or industrial settings. Its transport wheels and heavy-duty construction enable flexible positioning and stability during operation.

Q: What is the process for operating and adjusting the electrode gap on this machine?

A: The treater supports both manual and automatic electrode gap adjustments to ensure optimal and uniform treatment. Operators can use the digital LCD control panel to fine-tune settings, achieving high accuracy levels of 0.02 mm for the treatment gap, catering to different material thicknesses and process requirements.

Q: How does this corona treater ensure safe and reliable operation?

A: Safety is addressed with interlock systems and overload protection, preventing unauthorized access or electrical hazards during operation. The sealed ball bearings and heavy-duty steel frame also contribute to machine reliability, while the lack of external lubrication minimizes maintenance.

Q: What are the main benefits of using this corona treater?

A: Key benefits include energy-efficient performance, uniform and high-quality treatment, robust and durable construction, and ease of installation. With digital control, industrial connectivity (RS485/Ethernet), and comprehensive service support, it provides high throughput and consistent results for large-scale production demands.
